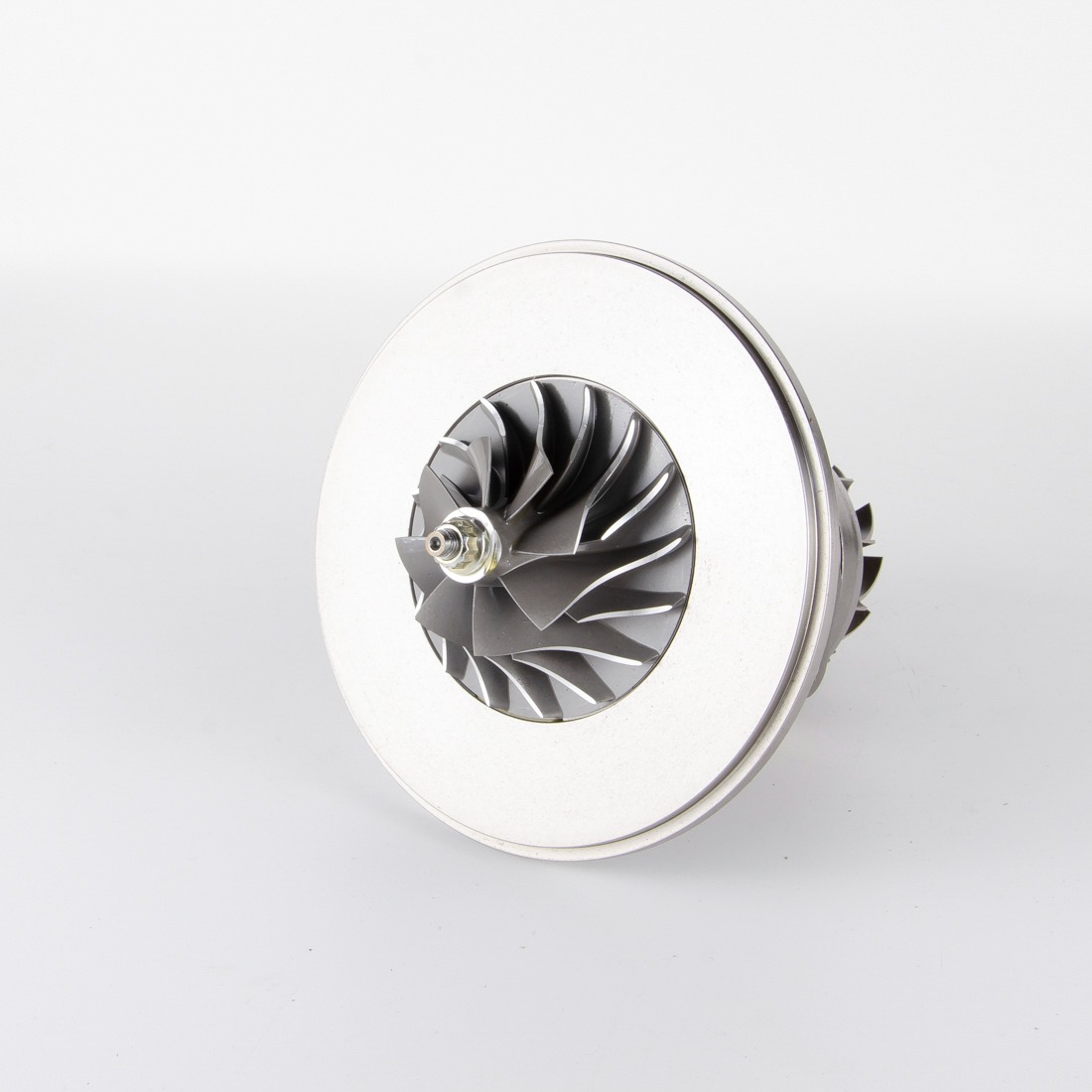

Turbocharger Cartridge 3536323 3538868 3802695RX

The Turbocharger Cartridge 3536323 3538868 3802695RX Turbo CHRA is a precision-engineered replacement part

designed for the Cummins DODGE 6BTAA 250HP engine as well as other models in the 6BT and 6BTA engine family. Known for their durability,

reliability, and wide application in commercial vehicles, industrial machinery, and Dodge Ram trucks, these engines rely heavily on the performance of their

turbochargers to deliver the right balance of power, efficiency, and fuel economy. The CHRA, also known as the turbo core or cartridge,

is the central rotating assembly of the turbocharger and is the most critical component for ensuring optimal turbo function.

1. Product Overview

The CHRA is essentially the “heart” of the turbocharger. It contains the turbine wheel, compressor wheel, bearings, and shaft,

all assembled into a balanced core unit. For Cummins 6BT and 6BTA engines, the turbocharger plays a vital role in increasing airflow into the combustion chamber,

which allows for more fuel to be burned and results in higher power output. With the 3536323, 3538868, and 3802695RX turbo cartridges,

vehicle owners and fleet operators can expect a high-quality replacement solution that restores original turbo performance.

This particular CHRA is engineered to meet or exceed OEM standards. It is a cost-effective way to repair a worn or damaged

 turbo without replacing the entire turbocharger assembly. By simply installing a new core, the outer housing can be reused, saving money while still ensuring reliable engine performance.

2. Compatibility and Applications

The Cummins 6BT and 6BTA series engines are legendary for their ruggedness and versatility. They are widely used in:

• Dodge Ram trucks equipped with Cummins diesel engines.

• Commercial vehicles such as buses and delivery trucks.

• Industrial machinery, including construction and agricultural equipment.

• Marine applications where reliability under demanding conditions is critical.

The 6BTAA 250HP engine, in particular, is a turbocharged, aftercooled diesel engine that relies on a robust turbocharger to deliver consistent performance.

The CHRA part numbers 3536323, 3538868, and 3802695RX are directly compatible with these engines, making them a trusted choice for both repair shops and end users.

3. Key Features

1. OEM-Quality Construction – Manufactured using high-grade materials to match or exceed the quality of the original factory-installed parts.

2. Balanced for Durability – The turbine and compressor wheels are dynamically balanced to ensure smooth operation and reduce vibrations.

3. High-Temperature Resistance – Designed to withstand the extreme heat generated by diesel combustion and exhaust gases.

4. Precision Fit – Direct replacement for Cummins turbocharger cartridges, ensuring hassle-free installation.

5. Extended Service Life – Enhanced bearing system and improved sealing for long-lasting reliability.

4. Benefits of Replacing the Turbo Cartridge

A failing turbocharger can significantly affect engine performance, causing power loss, increased exhaust smoke, poor fuel efficiency, and in severe cases,

engine damage. By replacing only the CHRA, operators can restore performance at a fraction of the cost of a complete turbocharger replacement.

• Cost-Effective Solution – Reuse the existing turbo housing and replace only the core.

• Restored Power Output – Brings the engine back to peak performance.

• Reduced Downtime – Faster and easier to install compared to replacing the entire turbo.

• Improved Fuel Economy – Ensures proper combustion and efficient fuel usage.

5. Technical Specifications (General Reference)

• Part Numbers: 3536323, 3538868, 3802695RX

• Application: Cummins 6BT, 6BTA, 6BTAA 250HP engines

• Component: Turbocharger Core (CHRA)

• Material: High-strength steel alloy shaft, aluminum compressor wheel, heat-resistant turbine wheel

• Performance: Engineered to OEM specifications for airflow and boost pressure

6. Importance for Cummins 6BT Engines

The Cummins 6BT engine family is renowned for its reliability, but like any diesel power unit, it requires a properly functioning turbocharger to perform at its best.

The turbocharger not only increases power output but also improves efficiency and reduces exhaust emissions.

The CHRA is the part most subjected to wear due to its high-speed rotation (often exceeding 100,000 RPM) and exposure to extreme temperatures.

Replacing a worn cartridge with the 3536323, 3538868, or 3802695RX ensures that the engine continues to deliver dependable performance,

whether it’s powering a Dodge Ram pickup truck, a piece of heavy machinery, or a marine vessel.

7. Signs You Need a Turbo Cartridge Replacement

• Excessive smoke from the exhaust.

• Noticeable loss of engine power.

• Unusual whining or grinding noise from the turbo.

• Increased oil consumption or oil leakage into the turbo system.

• Poor fuel economy and sluggish acceleration.

If any of these symptoms are present, it is often more economical to replace the CHRA rather

than attempt costly turbo repairs or risk further engine damage.

8. Installation and Maintenance Tips

Installing a new turbocharger cartridge requires mechanical knowledge, but with proper tools, it is straightforward. Key steps include:

1. Ensure the turbo housing is clean and free of debris.

2. Verify that oil supply and return lines are clean and unobstructed.

3. Prime the new CHRA with clean engine oil before starting the engine.

4. Replace gaskets and seals to prevent leaks.

5. Allow the engine to idle for a few minutes after installation to ensure proper lubrication.

Regular maintenance such as timely oil changes, using high-quality filters, and ensuring proper cooling can significantly extend the life of the turbocharger.

9. Why Choose This Turbo Cartridge

When selecting a replacement turbocharger core, quality and compatibility are crucial. The 3536323, 3538868, and 3802695RX cartridges are trusted solutions

because they are built to the highest standards, ensuring reliability under demanding working conditions. They are suitable for both professional fleet

operators and individual vehicle owners who want dependable performance and long service life.

10. Conclusion

The Turbocharger Cartridge 3536323 3538868 3802695RX for Cummins DODGE 6BTAA 250HP with 6BTA 6BT Engines is a high-quality

replacement part that restores engine performance and efficiency. By delivering OEM-level precision, durability, and compatibility,

 this CHRA ensures that your Cummins-powered vehicle or machine continues to operate at peak performance.

Whether you are maintaining a Dodge Ram truck, a piece of industrial equipment, or a marine engine, this turbo cartridge offers a cost-effective

 and reliable solution to keep your engine running strong. Investing in a proper CHRA replacement not only improves power and fuel

 efficiency but also safeguards your engine against costly failures in the long run.
